NOTE:  The status indication is slightly different on controllers running sw. v. 2.x and 3.x




Sw. v. 2.x

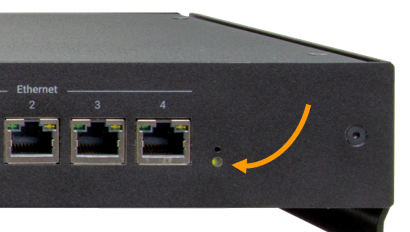

Status/Power LED:

  • No light: Device is not powered on (main CPU not running).
  • Flashing green light (only on HW revision 04 and newer):
    • Slow: Starting up or rebooting.
    • Fast: SW updating.
  • Solid green light: Device is powered on.




Sw. v. 3.x

Status/Power LED:

  • No light: Device is not powered on (main CPU not running).
  • Flashing green light (only on HW revision 04 and newer):
    • Slow: Starting up or rebooting.
    • Fast: Applying configuration or SW updating.
  • Solid green light: Device is powered on.
