The TRIAX Network Analyser tool has three main use cases:

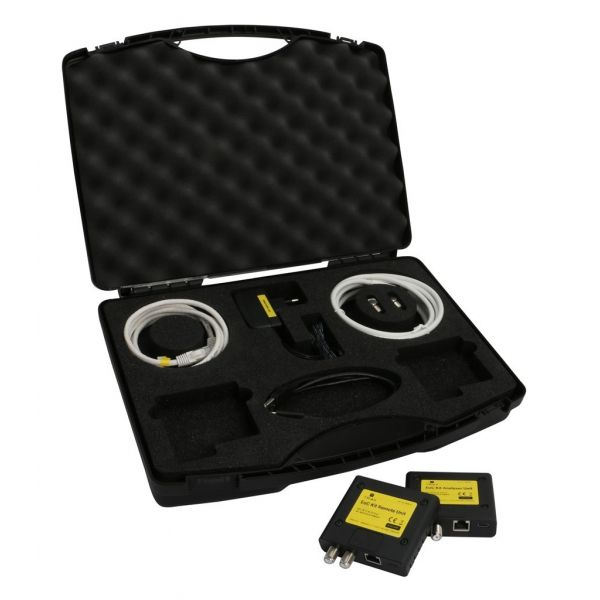

  • Pre-qualification of new customer sites using the EoC Kit Analyser and a laptop computer.
  • Generate Network Report / Acceptance Report once installation has been completed.
  • Troubleshooting during installation or on an existing installation.


Download the user manual here: TNA user guide


Download the software here:  TNA software



After installing the TNA software, you can use it along with the Analyser kit.

I always start the software with log window

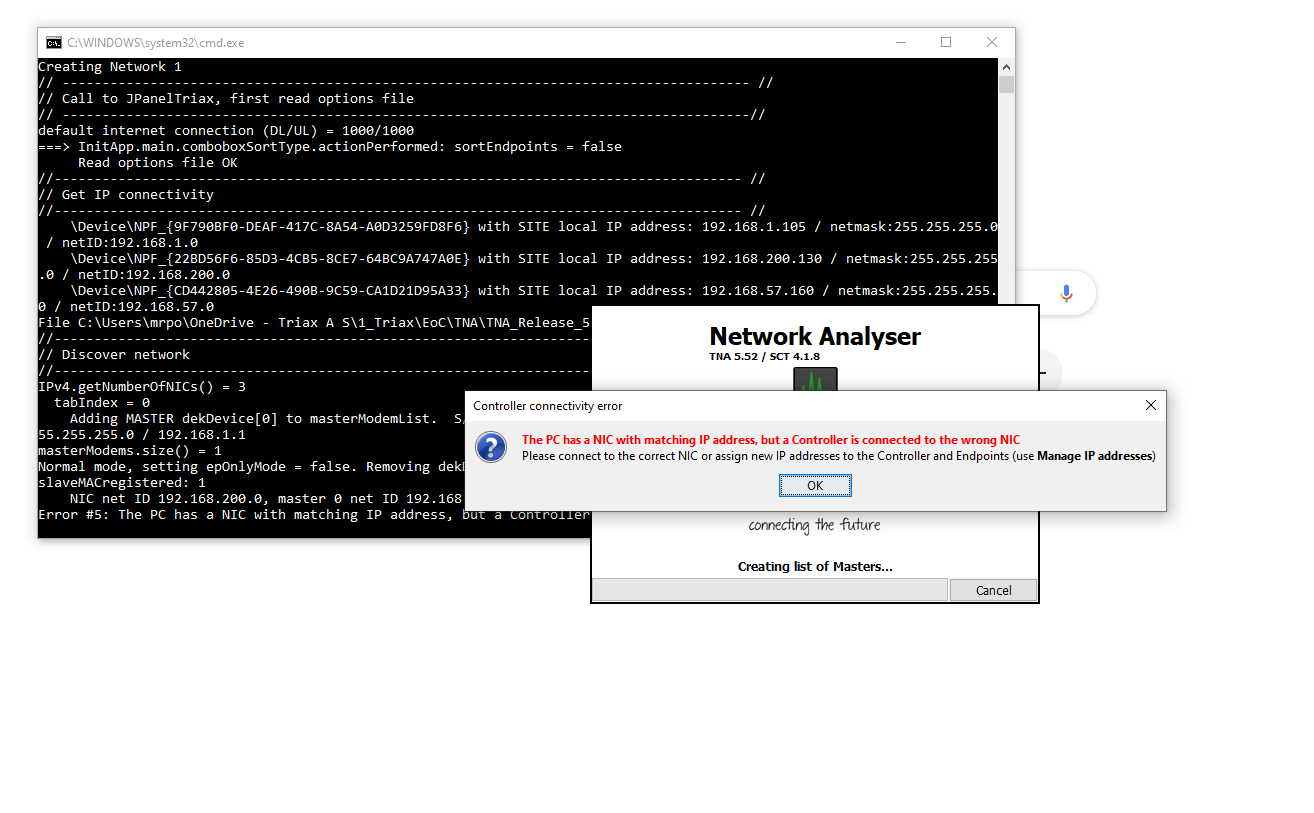

When starting up, you may see this message (IP-address and NIC issues)


Accept (OK) and continue

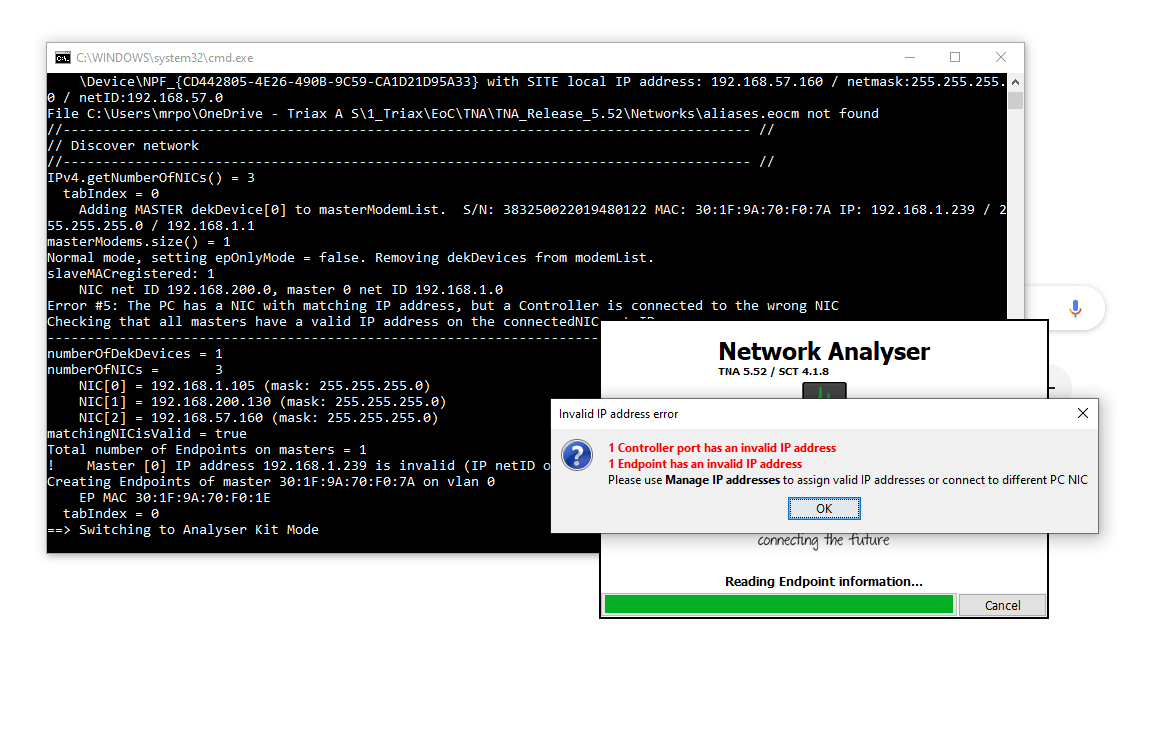

Accept (OK) and continue

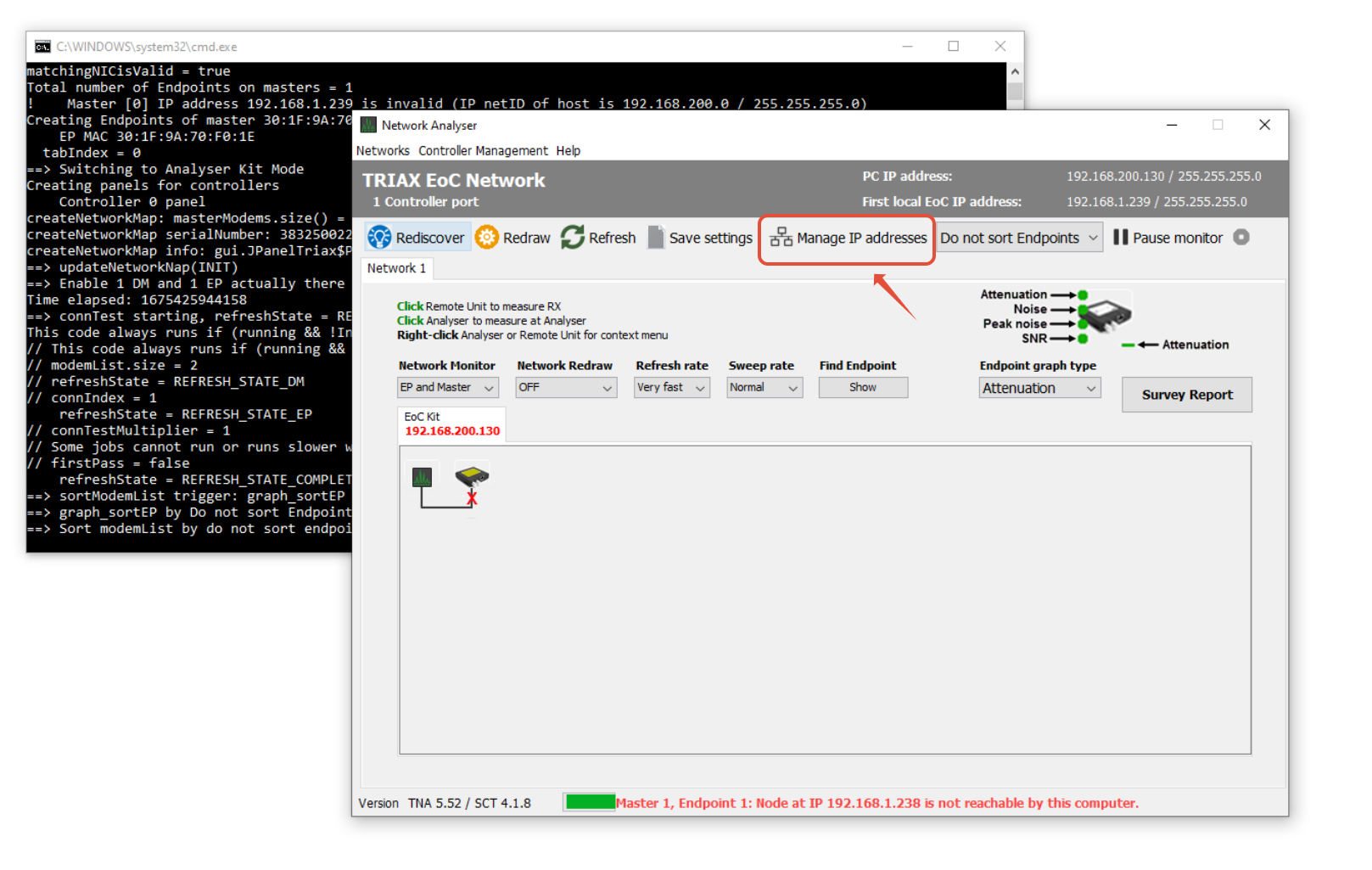

Select the "Manage IP adresses"

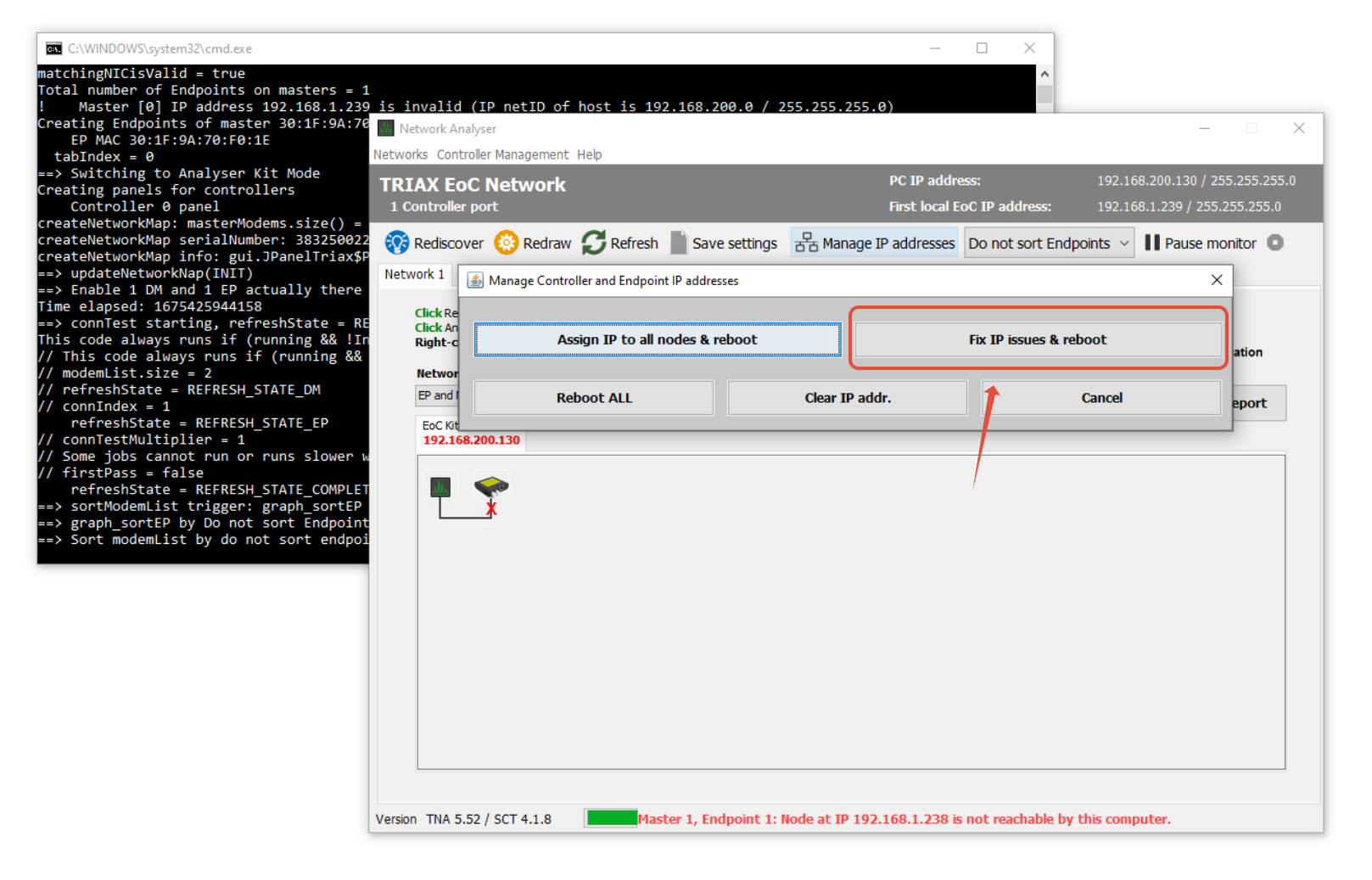

Then "Fix IP issues & reboot"

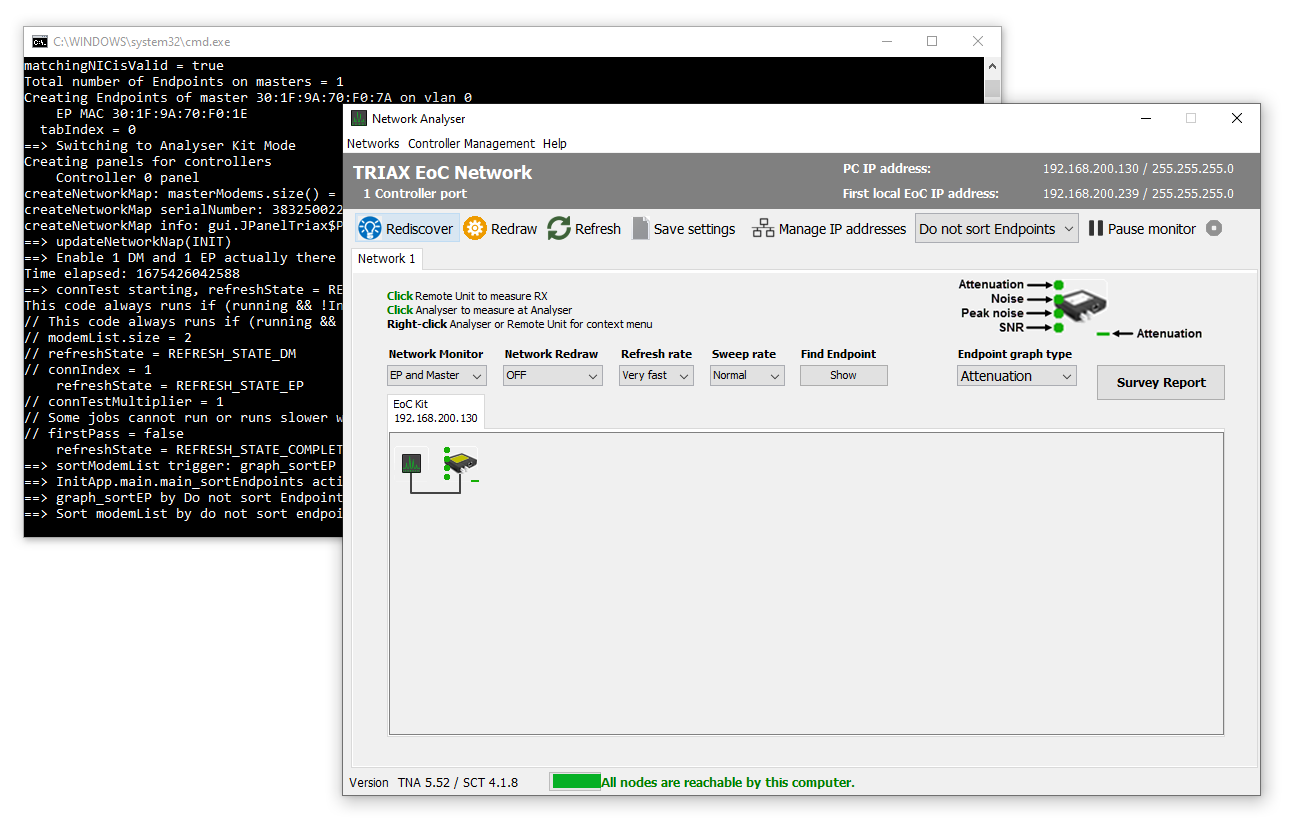

The software will solve the IP issues and reboot and you will be ready to analyse the coax network
